时钟发生器

CLG52147 可替换 Si52147

The CLG52147 is a high-performance, PCIe clock generator that can source nine PCIe clocks from a 25 MHz crystal or clock input.
The clock outputs are compliant to PCIe Gen 1, Gen 2, Gen 3, Gen 3/4 SRNS and Gen 5 common clock specifications. The device
has six hardware output enable control pins for enabling and disabling differential outputs. A spread spectrum control pin for EMI
reduction is also available. The small footprint and low power consumption makes the CLG52147 the ideal clock solution for
consumer and embedded applications.

Features
◼ PCI-Express Gen 1, Gen 2, Gen 3,
Gen 4 and Gen 5 common clock
compliant
◼Gen 3/4 SRNS Compliant
◼ Supports Serial-ATA (SATA)at 100 MHz
◼ Low power push-pull HCSL
compatible differential outputs
◼No termination resistors required
◼Output-enable pins for all clocks
◼Spread enable pin
◼ 25 MHz crystal input or clock input
◼Up to nine PCI-Express clock outputs
◼ I2C support with readback capabilities
◼ Triangular spread spectrum profile
for maximum electromagnetic
interference (EMI) reduction
◼ Industrial temperature:
–40 to 85℃
◼3.3 V power supply

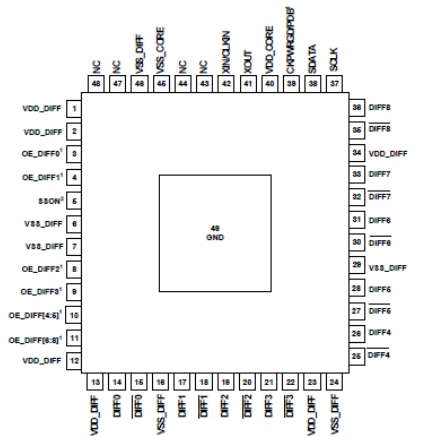

◼48-pin QFN package

Applications
◼ Network attached storage
◼ Wireless access point
◼Multi-function printer
◼ Servers
